Looking for the best way to enhance the style with a lower stance, comfort for the long touring rides, working those road racing skills in the twisty roads, increase your load carrying weight? Well look no further! The all new Blacksmith Phantom Air Ride sytem is the best upgrade for the Yamaha-Star Stratoliner. So what make our system perform better than the competition? One word, a single one piece housing performance cylinder with more constant air control valving.

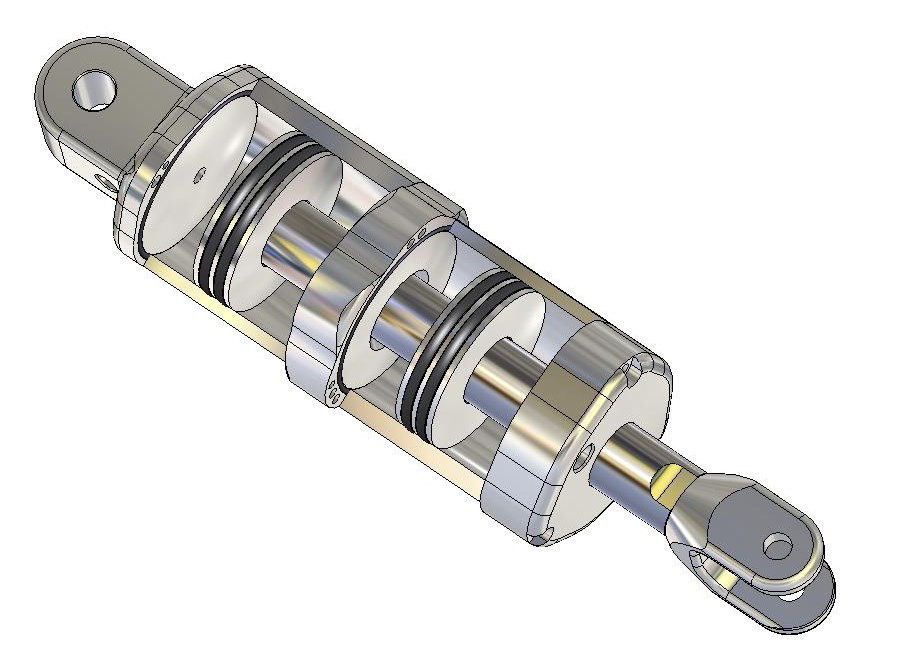

The Metric V-Twin shock has two air cylinders in axial alignment, creating four chambers. The two chambers which create lift are connected through an internal passage inside the rod. Dual lift chambers greatly reduces the air pressure required to lift the bike, creating a more comfortable ride. The other two chambers are ported independently, one vented, and the other is used for rebound control. Rebound is set by air pressure in the rebound chamber. The diameter of the package is slightly smaller than a stock shock. Therefore, we can apply this shock to any monoshock suspension.
We have learned from testing other systems that once the cylinder is pressurised with air, the cylinder is more of a support than a shock. This will cause a semi-comfort ride with a partial pressurezied system and harsh ride if it exceed this "sweet spot" pressurized level. The problem you ask? You can regulator what the correct pressurized level is for that "Sweet Spot" riding comfort. So we looked into providing a cylinder that has an unique way of recirculating the pressurized air as the rider engages different road surfaces, without the needing to find a sweet spot. This allow the cylinder to need less air(which gives you a lower stance), react to road imperfection as a OEM shock (absorb the impact), remove the harsh stiff ride known in other air ride systems.
We also added a preminum compressor and two regulator valves to insure constant regulation of the pressure in the system. As with all our systems you can upgrade to our 2 button remote control, front air ride, and our Bandito 1 sec up package.
Here an overview of our base system:
- High performance air cylinder
- Dual air regulator valves
- High performance air compressor
- Prewired toggle switch
- pre-wired harness and fitting, hoses
- Prewired micro switch
- Two button remote
- Four Button Remote
- Phantom Front Air System( (2) drop in struts, dual regulators and toggle switch, (2) Factory tube fitted air caps)
Installation time: 2hrs
Difficulty level: moderate
***Illustration may not reflect kit for your vehicle.***Installation time 2hrs***Please see our return policy in the FAQ section of the store.***Custom Product***
